FNB58 USB Voltmeter Ammeter Type-C Fast Charging Tester
₹5,891.00 ₹6,999.00

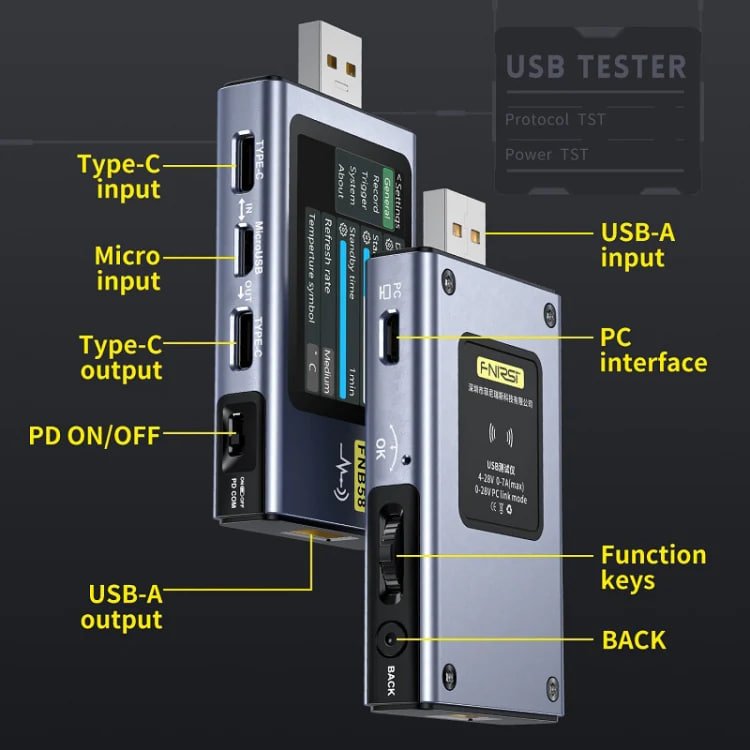

- Full interface compatible with large display, data at the bottom, equipped with 2.0-inch LCD high-definition display, measurement data clearly visible; with 5P high-current USB-A, 24P full-pin Type-C input and output interface, charging detection, a step faster.
- Strong compatibility, 0.00001 low resolution, real-time monitoring of the subtle changes in voltage, current and power during charging.
- Support automatic protocol detection protocol decoy, PD2.0, 3.0, PPS, QC2.0, 3.0, QC4, FCP, SCP, AFC, PE, DASH VOOC, SuperVOOC ……
- Human-computer interaction, cell phone like intelligent operation, simple display interface; independent function menu; humanized operation.
- 10 groups of energy records, battery capacity calculation in one step, support 10 groups of charge and discharge energy data records; built-in battery capacity calculation formula, through the recorded data can quickly calculate the battery capacity.
- Bluetooth APP and upper computer, driver-free installation, synchronized data, efficient and convenient; Bluetooth APP over-voltage and over-current alarm. (Only with Bluetooth version)
Description
FNB58 USB Voltmeter Ammeter Type-C Fast Charging Tester
FNIRSI-FNB58 PD QC USB Tester Digital Voltmeter Ammeter TYPE-C Fast Charge Detection Trigger Capacity Ripple Measurement.
FNIRSI Usb Battery Tester Voltmeter Ammeter Type-C Fast Charge Detection Trigger Capacity Measurement Ripple Measurement, Multicolor with Bluetooth
The FNIRSI FNB58 USB Tester without Bluetooth is a versatile device for measuring and analyzing USB power characteristics. It is equipped with a 2.0-inch TFT LCD for clear data visualization and supports multiple USB interfaces, including USB-A, USB-C, and Micro-USB
Key features include:
- Voltage and Current Monitoring: Measures real-time voltage (4-28V) and current (0-7A) with high resolution (10µV for voltage and 10µA for current).
- Power Analysis: Supports power measurements up to 120W with a resolution of 10µW.
- Protocol Testing: Tests fast-charging protocols such as QC2.0, QC3.0, PD2.0/3.0, and more.

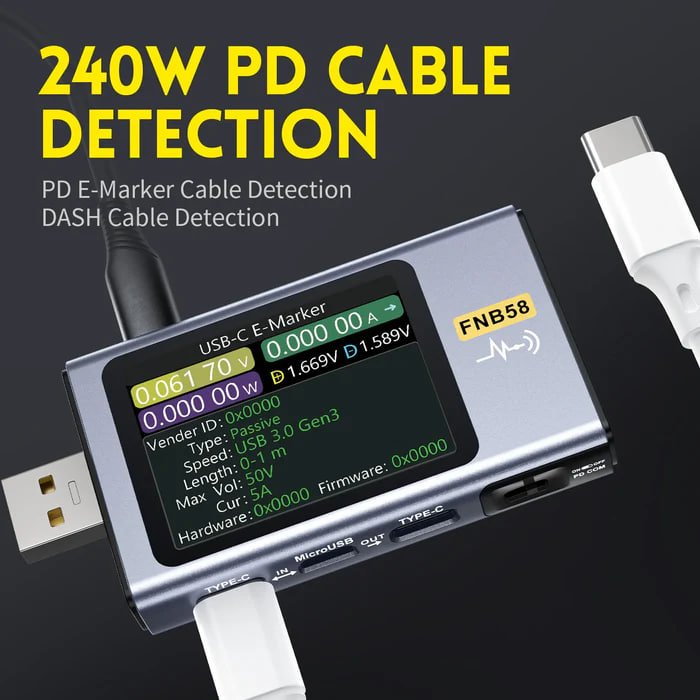

- Advanced Functions: Includes ripple measurement, internal resistance detection, and E-Marker cable data reading.
- Parameter Recording: Offers six-digit display for parameters and the ability to log data like voltage and current curves over extended periods.
This USB tester is ideal for evaluating the performance of chargers, cables, and USB-powered devices, ensuring reliability and compatibility. Compact in design (42 x 13 x 82 mm), it is also user-friendly, with a gravity sensor that automatically adjusts the display orientation.
FNIRSI FNB58 Features: FNIRSI FNB58 is an multifunction protocol capacity test tool, it integrated USB-A, Micro-USB, type-C interface, with 2.0 inch high definition display screen, using external 16-bit ADC, PD protocol physical chip, which can real-time monitoring of the voltage, current, power, capacity, recharging protocol, curve waveform and so on.
FNIRSI FNB58 Specifications:
Material: ABS
Monitor voltage: 4-28V
Monitor voltage resolution: 0.00001V
Monitor voltage accuracy: ±（0.2%+2）
Monitor current: 0-7.0A
Monitor current resolution: 0.00001A
Monitor current accuracy: ±（0.5%+2）
Monitor power: 0-120W
Monitor current resolution: 0.00001W
Monitor current accuracy: ±（0.5%+2）
Load equivalent international resistance: 0-9999.9Ω
Load equivalent international resistance resolution: 0.0001Ω
Load equivalent international resistance accuracy: ±（0.5%+2）
Capacity: 0-9999.99Ah
Energy used: 0-9999.99Wh
Cable resistance: 0-9999.99Ω
D+/D- voltage: 0-3.3V
D+/D- voltage resolution: 0.001V
D+/D- voltage accuracy: ±（1.0%+2）
Equipment temperature: ℃/℉
