Description

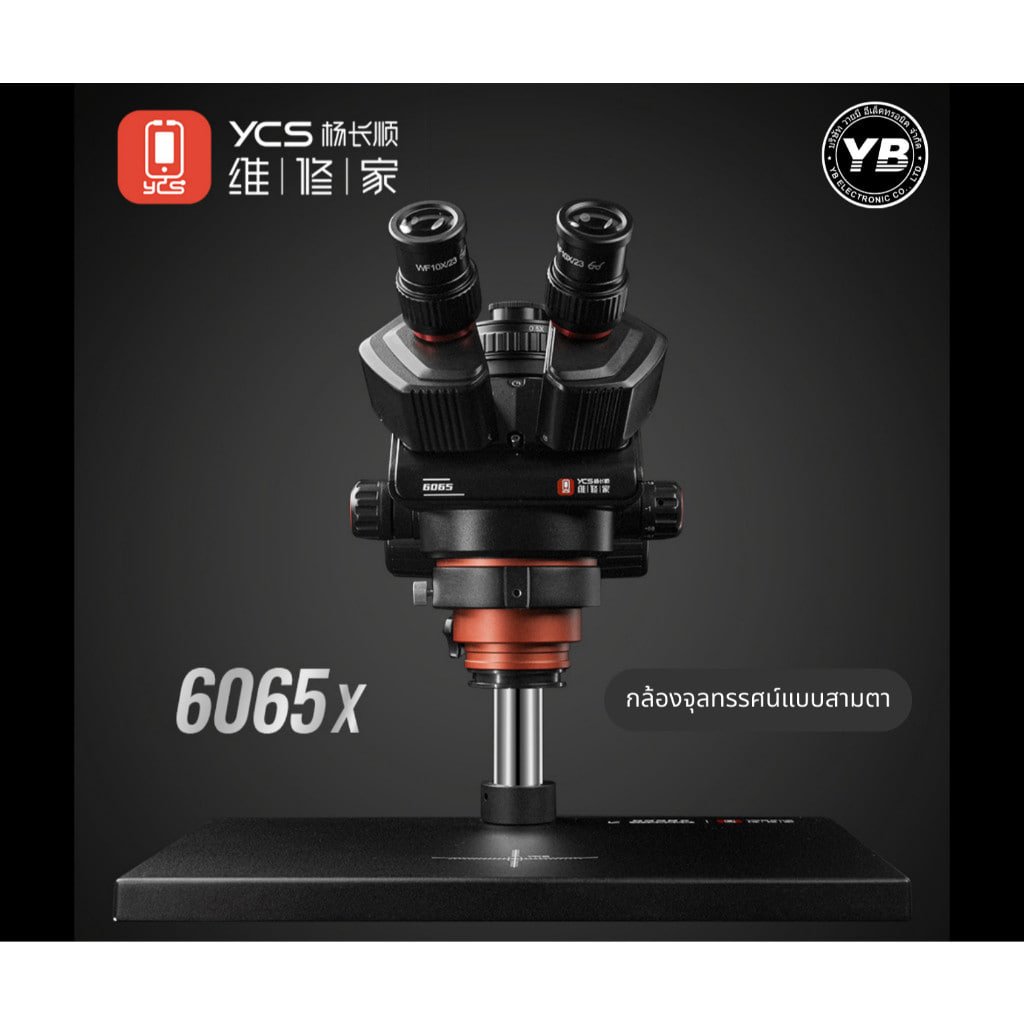

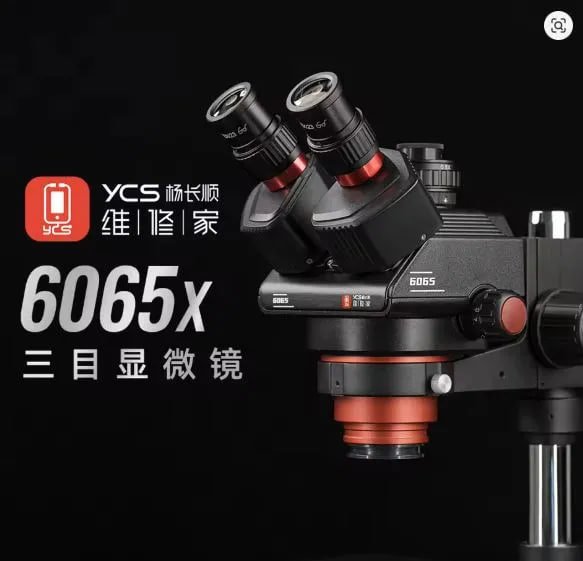

YCS 6065 6X-65X Industrial Trinocular Stereo Microscope with Large Base for PCB Repair

YCS 6065 HD Trinocular Microscope 0.6x-6.5x Magnification for Phones PCB Welding Microscope.

Features:

• Zoom adjustment knob: Continuous zoom without screen flicker

• Trinocular interface: Applicable to two observation modes: body type and camera connection. With 4K camera, the whole process can be observed with high efficiency (The 4K camera sold separately)

• Up and down focus knob: Coordinate with eyepiece adjustment. Up and down adjustment makes the picture clearer

• High eye point wide-angle eyepiece: WF10X23MM day mirror with ultra-large field of view, no fatigue

• Continuous zoom objective lens: Continuous zoom objective lens,each magnification is clearly visible

• Applicable To Multiple Scenarios: Control micro details and focus on micro aspects. Applicable to multiple scenarios such as maintenance, teaching, and experiments

• High Eye Point Wide-angle Eyepiece: Optical lens uses anti-reflection coating technology, high refractive index and transmittance, unlock large field of view, microscopic details are fully visible

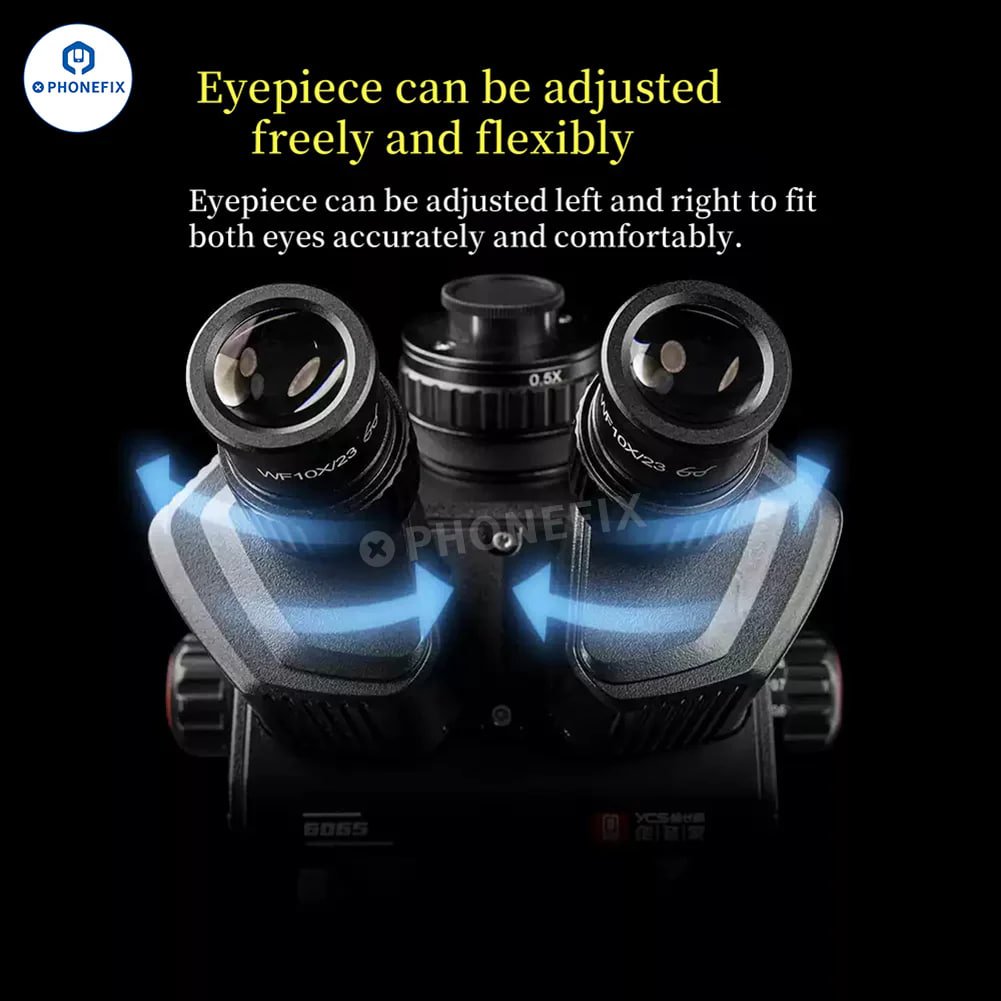

• Free and Flexible Fine-tuning of Eyepiece: Flexible left and right adjustment of eyepiece, suitable for both eyes, accurate and comfortable

• 0.6X-6.5X Magnification: 6-65 times as you like, the magnification fine-tuning knob accurately controls every degree of magnification, and the details are under control

• Light and Dark As You Like, Details Are Clearly Visible: Equipped with LED light, free dimming and accurate locking to make every detail invisible,making it clearer

X80 4K Camera Specification:

• HDMI output: 3840*2160@30FPS, 1920*1080@60FPS

• Type-C output: 3840*2160, 2560*1440, 1920*1080, 1280*720, 640*480, 424*240, 320*240(MJPG)

• Input voltage: DC 5V

• Operation mode: Mouse, remote control, keypad, computer software

• CMOS sensor: Sony 1/1.8 inch

• Pixel: 8 million

• Pixel size: 1.45μm*1.45μm

• Hardware Interface: Type-C*1, HDMI*1, TF*1

• Structure expansion interface: 1/4-inch bracket interface *1

• Status light: Power on orange and yellow light

• Lens interface: C/CS standard interface

• Storage: TF card/computer software

• Buttons: Function buttons*6

• White Balance: Auto/Manual, support R, G, B adjustable

• Exposure: Auto/Manual

• Menu Language: Chinese/English/Traditional

• Photo/video: automatic and manual naming, customize the save path

• Electronic magnification: 5 times electronic magnification

Package includes:

• 1 x Microscope Head

• 1 x Focusing Bracket

• 1 x Pair of Eyepiece

• 2 x Rubber Ring

• 1 x CTV Lens

• 1 x Dust Filter

• 1 x LED Lamp

• 1 x Column

• 1 x Base
