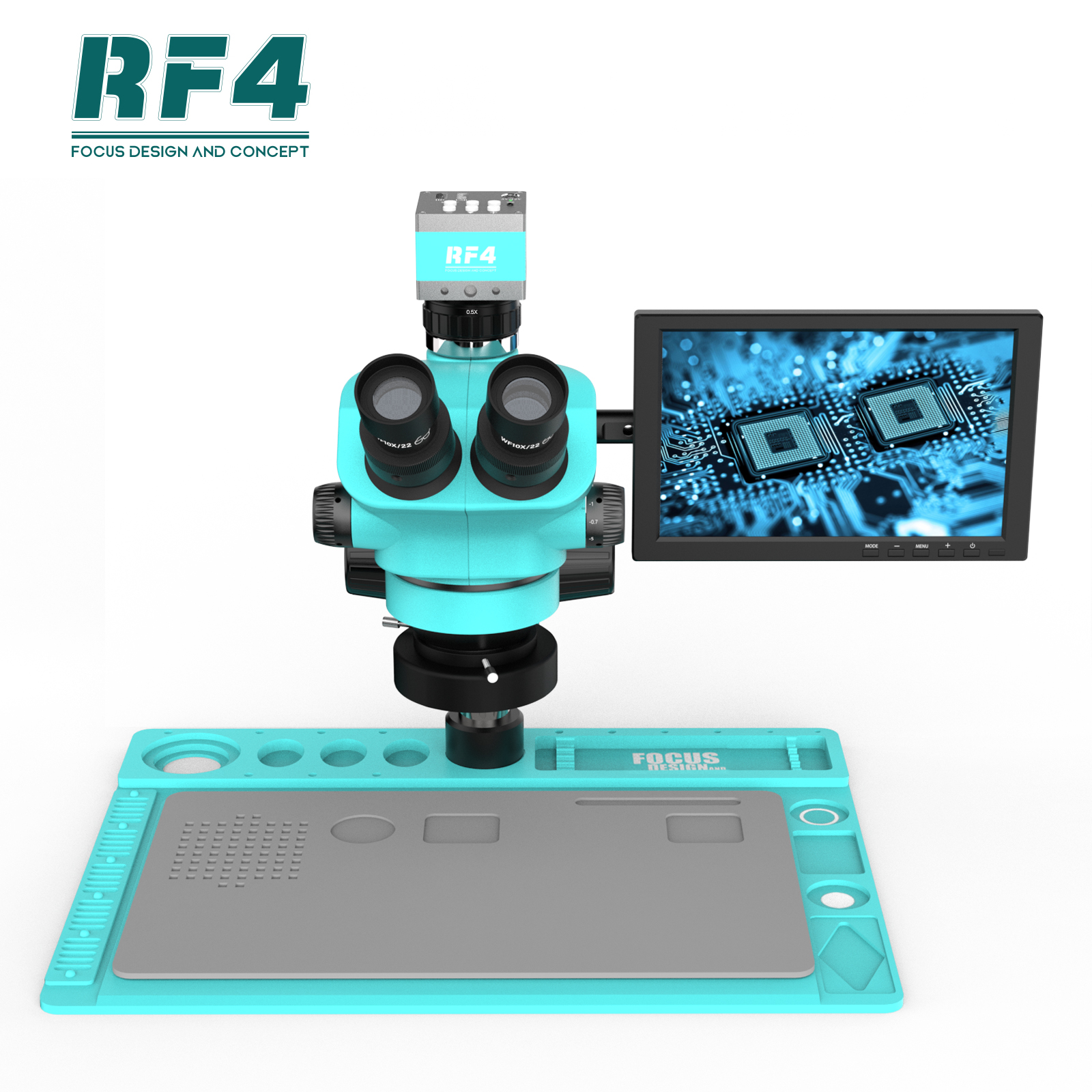

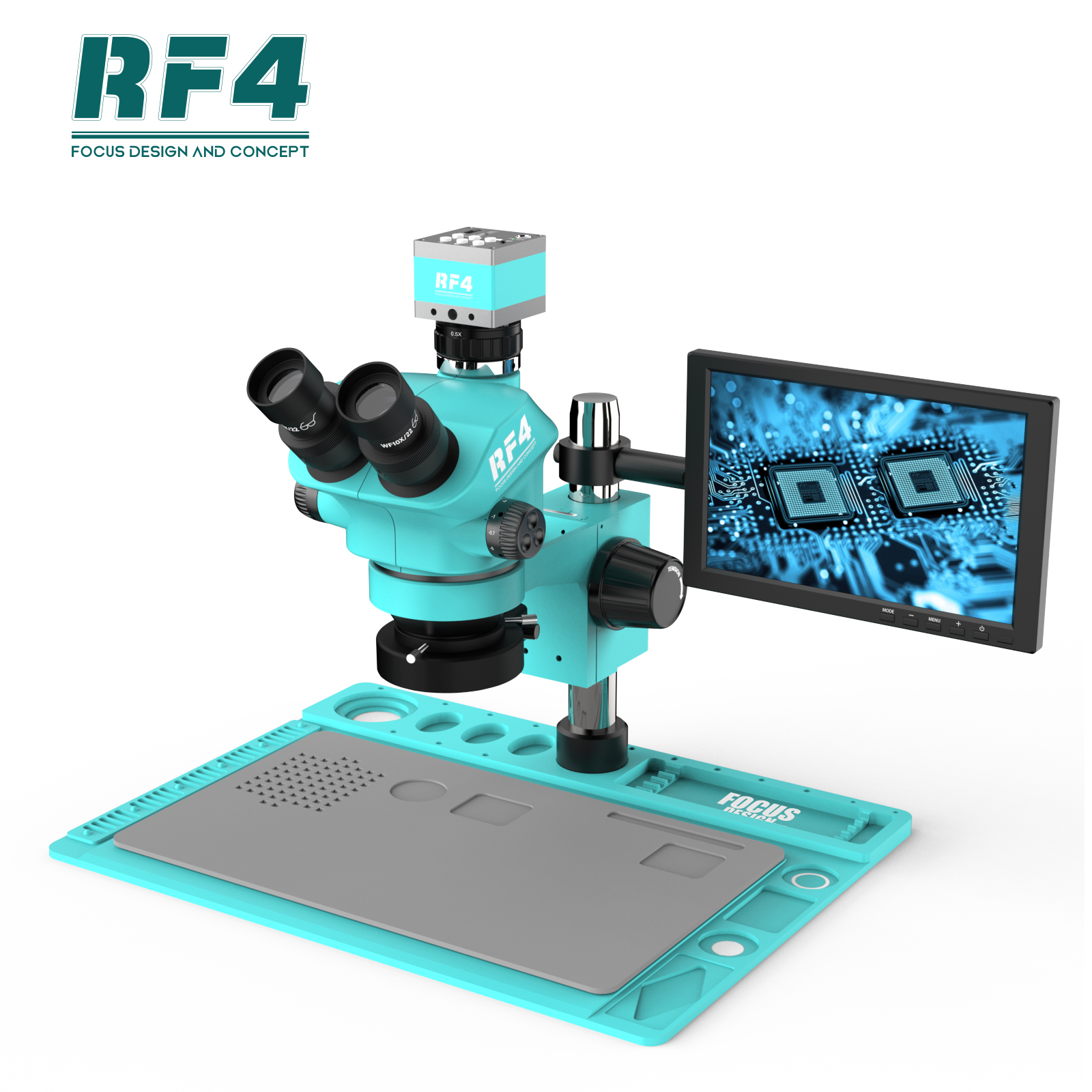

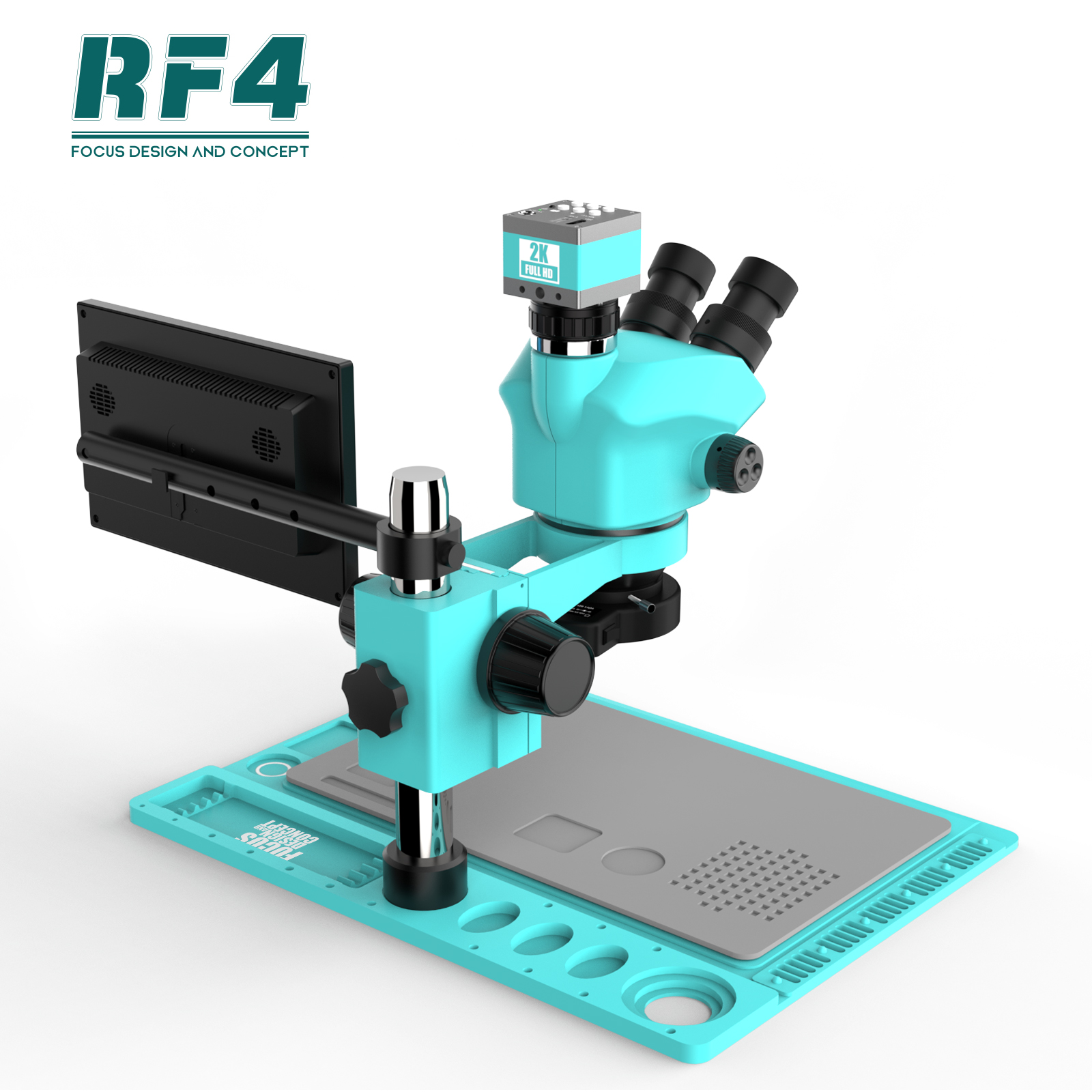

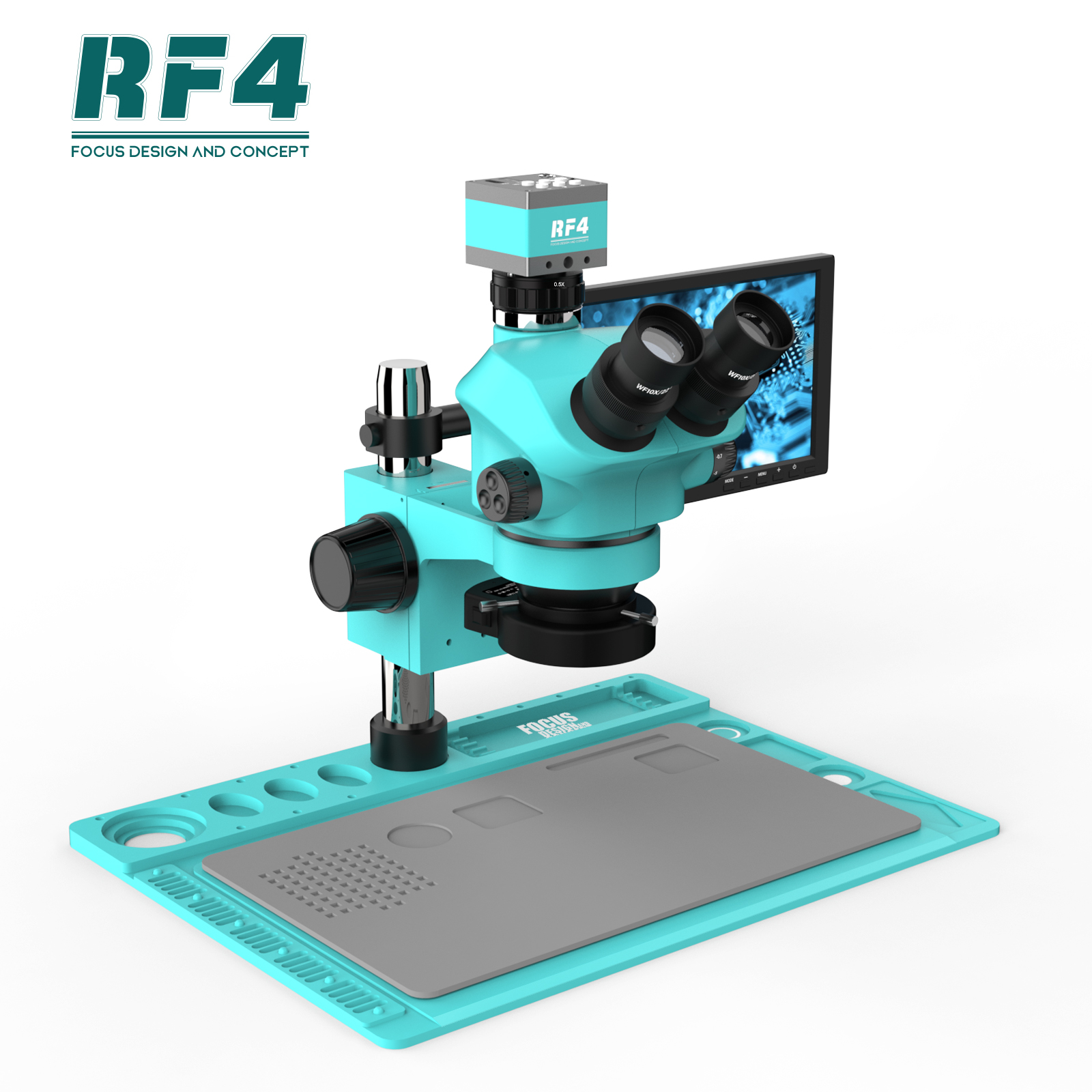

RF4 RF-7050TVD2-2KC1-S010 Trinocular Microscope

30,999.00

RF4 RF-7050TVD2-2KC1-S010 Trinocular Microscope
Overview
Trinocular Microscope Dental Practice Industrial lab microscope with 2k camera phone tools mobile phone repairing
Magnification:continuous zoom 7X to 50X Head: 45-degree inclined 360-degree swiveling trinocular Eyepiece: WF10X/22MM
Objective: 0.7-5.0X Camera connector:1/2ctv
Camera:2K camera
Monitor and eyepiece. Synchronous zoomCamera:Different models optional Stand:410*300mm Accessories: 144 adjustable led light & dust proof Lens

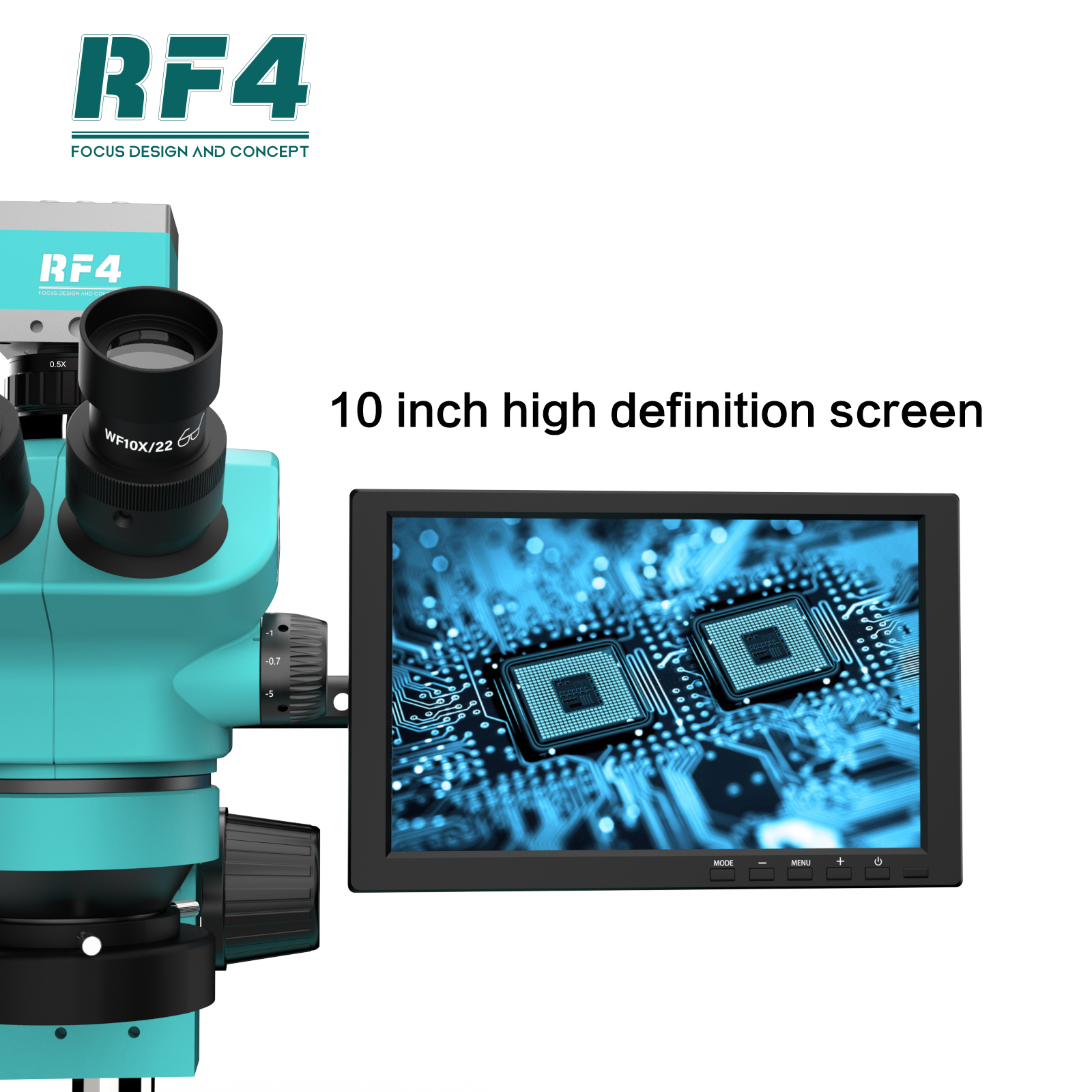

Monitor:10inch

Description

RF4 RF-7050TVD2-2KC1-S010 Trinocular Microscope

Overview

Trinocular Microscope Dental Practice Industrial   lab microscope with 2k camera phone tools mobile phone repairing

Magnification:continuous zoom 7X to 50X  Head: 45-degree inclined 360-degree swiveling trinocular Eyepiece: WF10X/22MM

Objective: 0.7-5.0X Camera connector:1/2ctv
Camera:2K camera
Monitor and eyepiece. Synchronous zoomCamera:Different models optional Stand:410*300mm   Accessories: 144 adjustable led light & dust proof   Lens
Monitor:10inch
Product Description
Support parameters
Column aperture: Φ32mmLens aperture: Φ76mmCenter distance: 155mmLifting range: 50mm
The base parameters
240mm φ32mm pillar410*300mm
Multifunctional aluminumalloy repair base
Expand silicone pad size:
330*198mm
Wide-angle eyepieces 10X/22
Magnification: 10X
Wide Field Of View 22mm
Matching size : 30mm
Applicable models are stereoscopic, fixed and continuous magnification microscopes
0.5X   CTV
1The material is all metal, the black part is aluminum alloy, and the silver part is copper chrome-plated bayonet.2The adapter ring can use LCD to focus, this kind of focus method is manual focus.3 The adapter has a transparent mirror inside, which can help the microscope display and the other display to achieve synchronous zooming.4   Weight: 0.09kg.

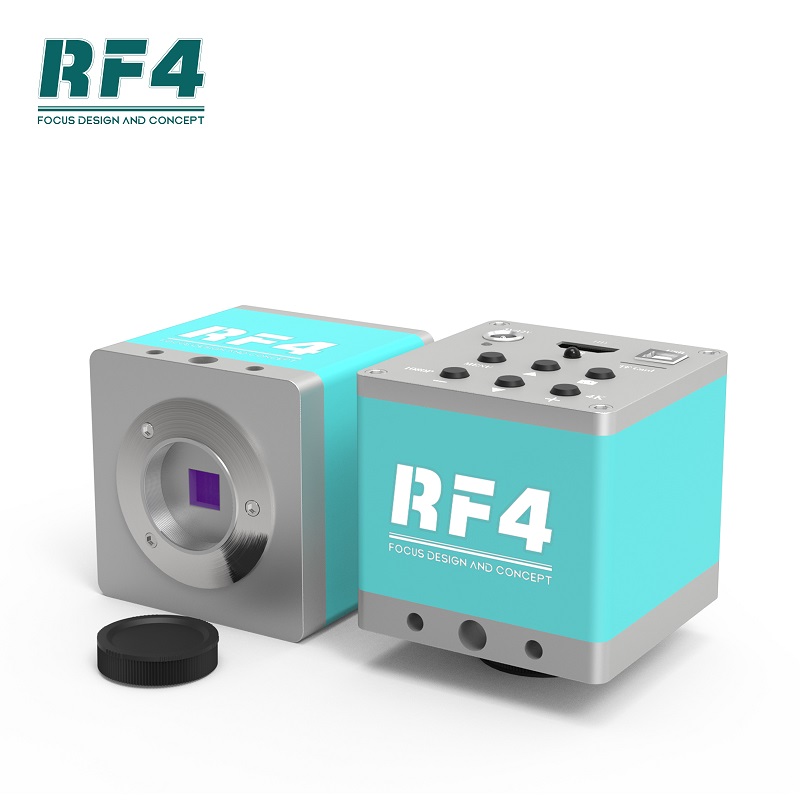

Microscope Camera
2k microscope camera
High definition, beautiful design

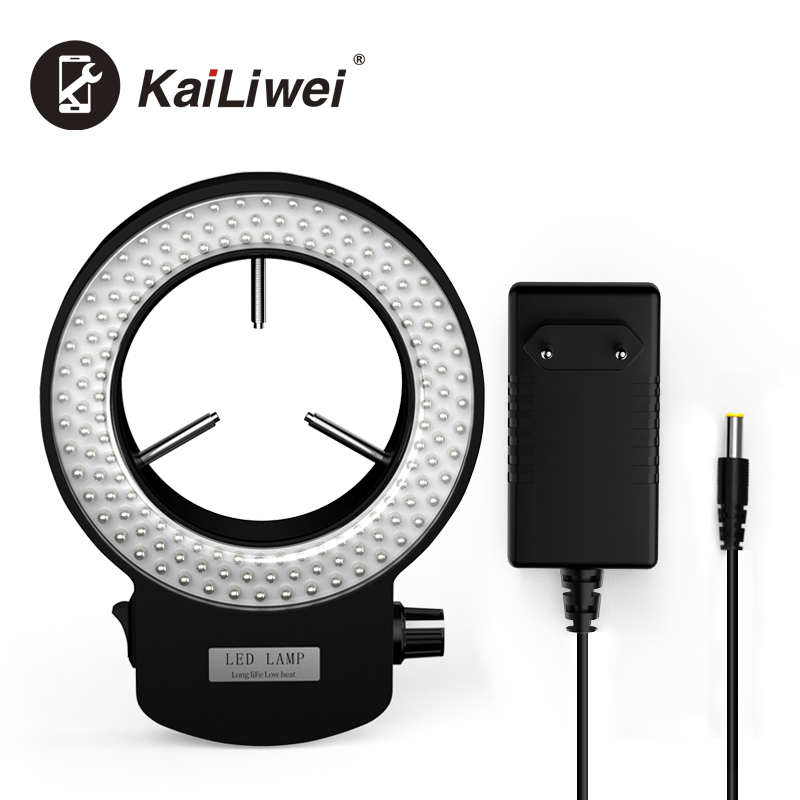

144 LED Ring Light
Input:AC 100-240V , 50/60Hz
Output:DC 12V , max 700mA
Light color:White
Number of lights:144 LEDs
Inside diameter 60mm
Different eyepieces match different magnifications of the same objective lens
