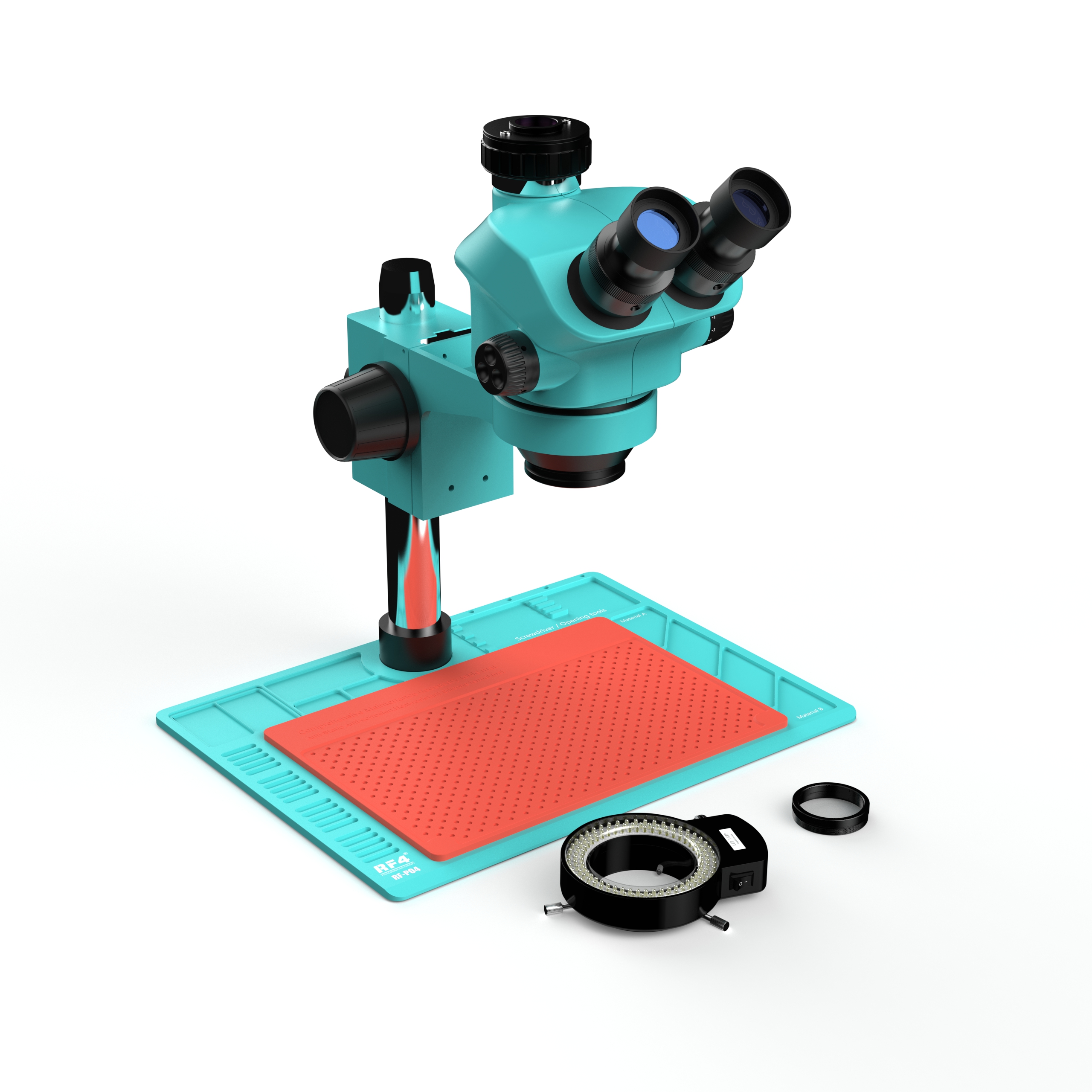

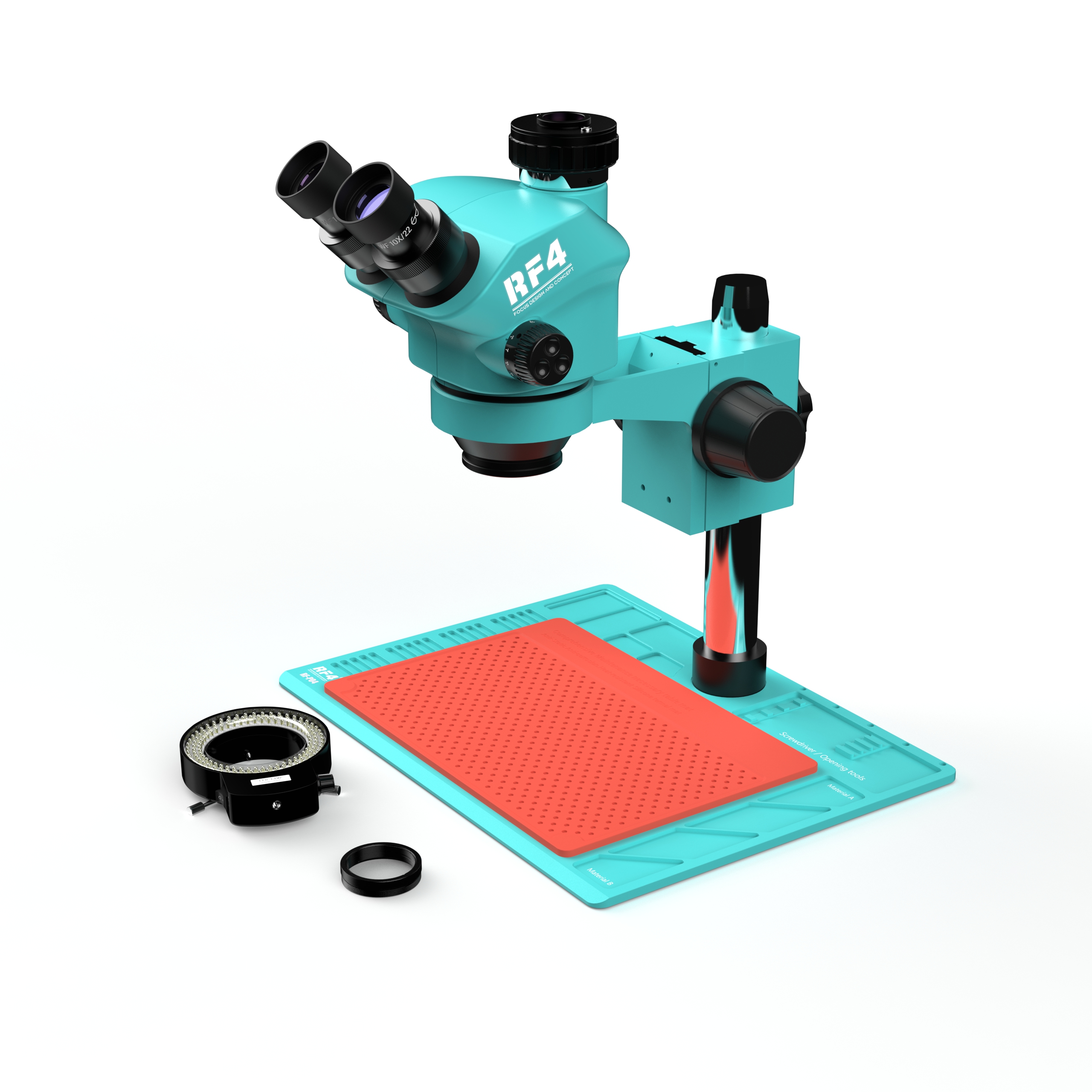

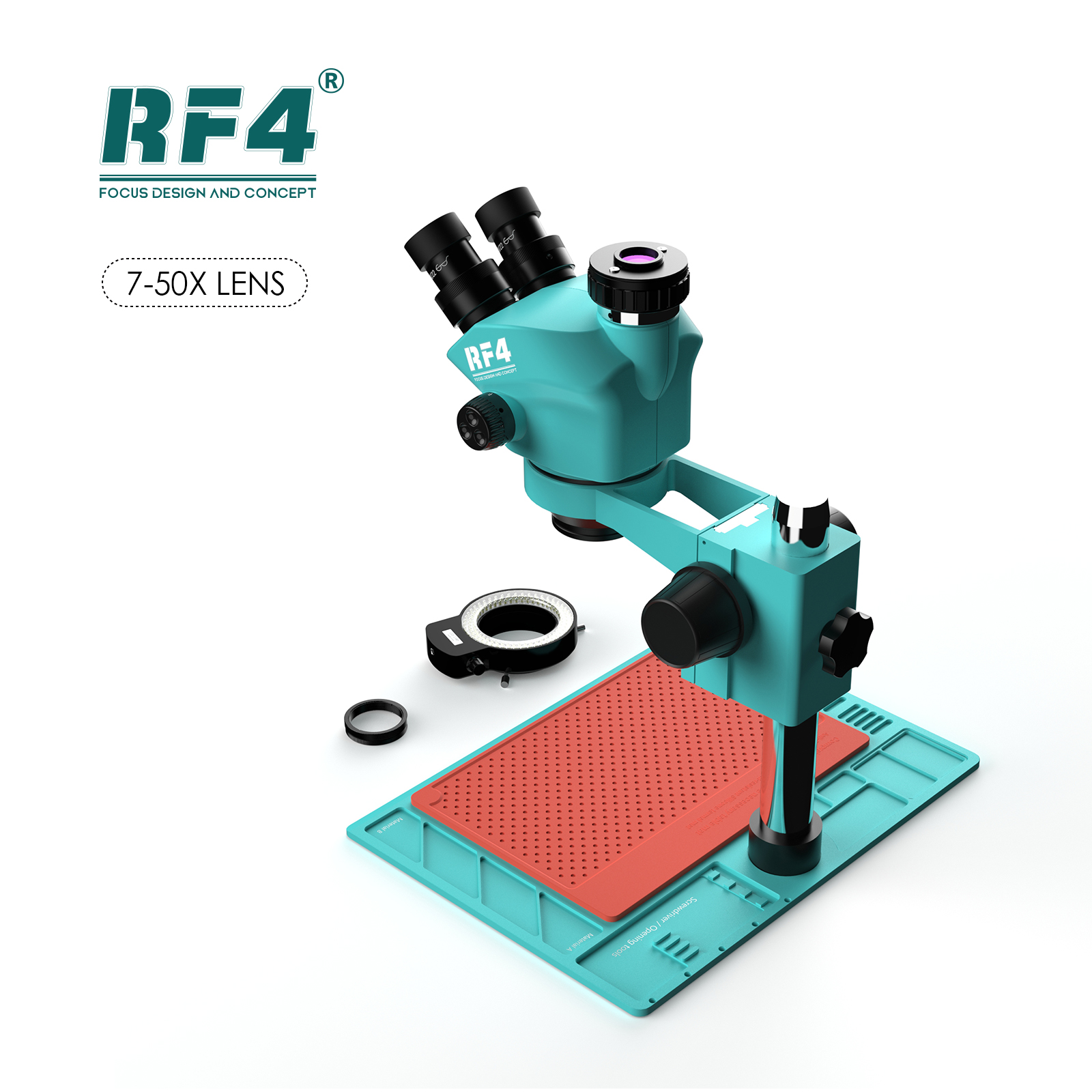

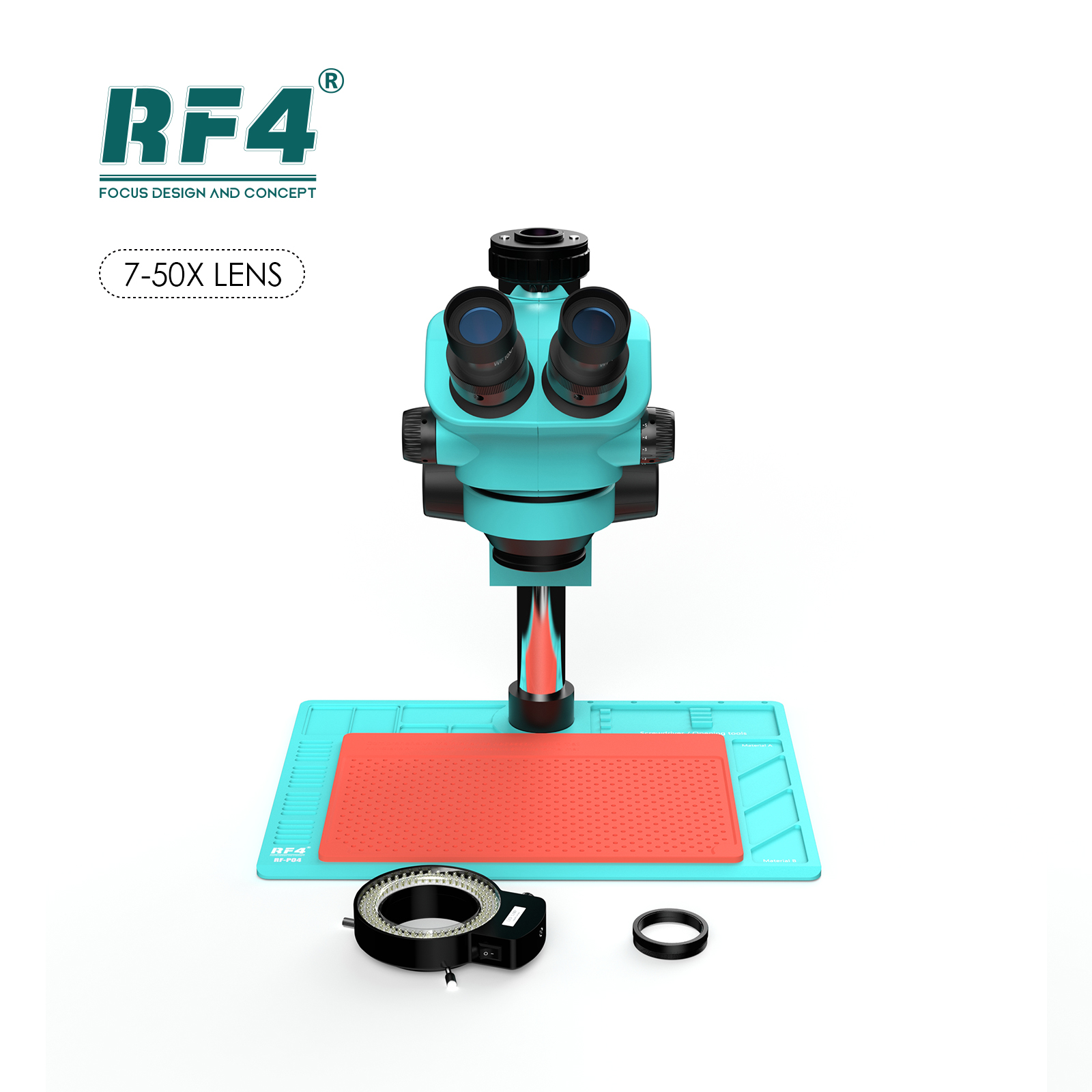

RF4 RF-7050-PO4 Trinocular Microscope

$225.13

RF4 RF-7050-PO4 Trinocular Microscope
RF4 Microscope Trinocular 7-50X electronic repair microscope for mobile phone repairing China good operating microscope
Magnification:continuous zoom 7X to 50X Head: 45-degree inclined 360-degree swiveling trinocular Eyepiece: WF10X/22MM Barlow Lens: 0.5X & 0.7&2.0X(optional) Objective: 0.7-5.0X Camera connector:1/2ctv Monitor and eyepiece. Synchronous zoomCamera:Different models optional Stand:250*330 mmAccessories: 144 adjustable led light & dust proof Lens



Description

RF4 RF-7050-PO4 Trinocular Microscope

Overview

RF4 Microscope Trinocular 7-50X electronic repair microscope for mobile phone repairing China good operating microscope

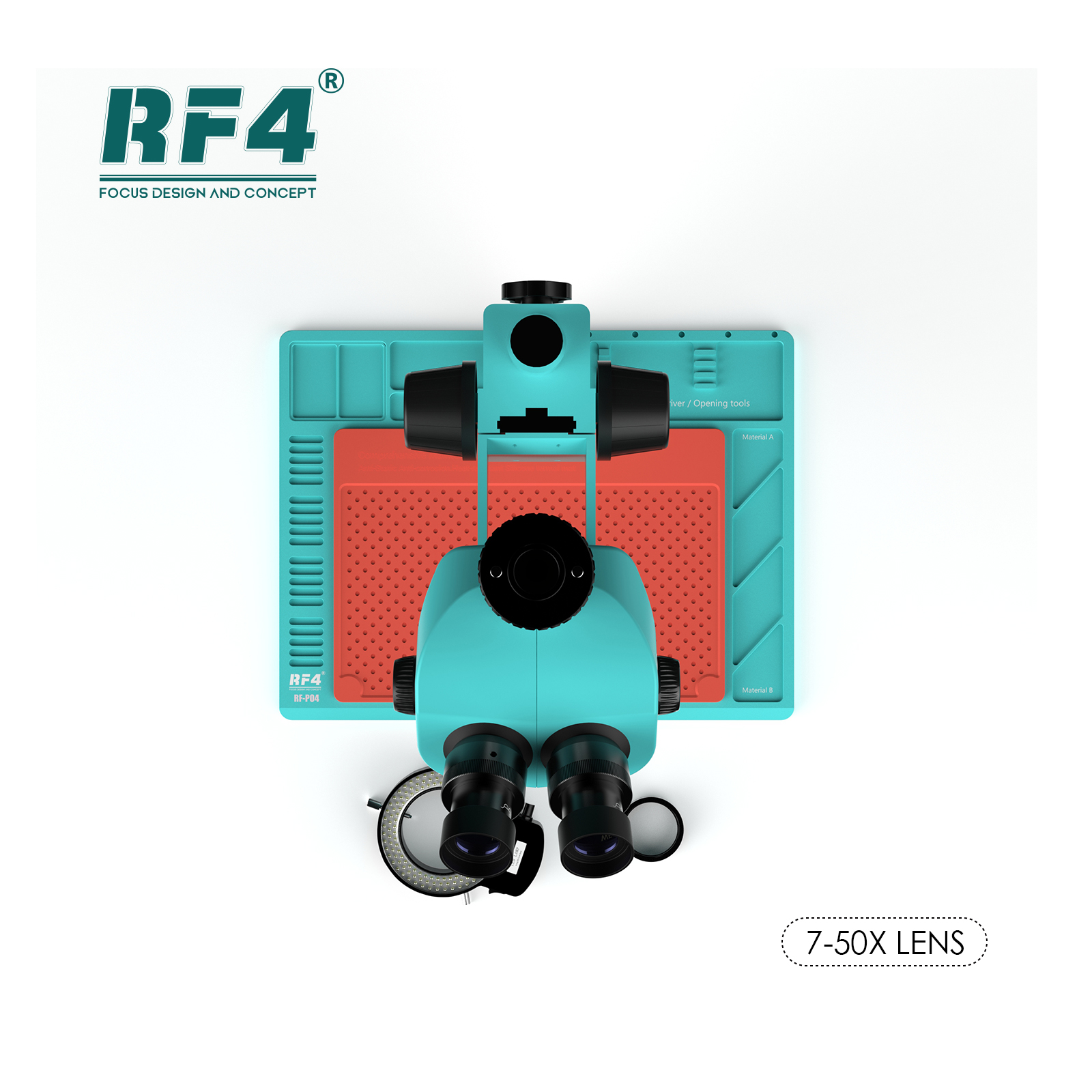

Magnification:continuous zoom 7X to 50X

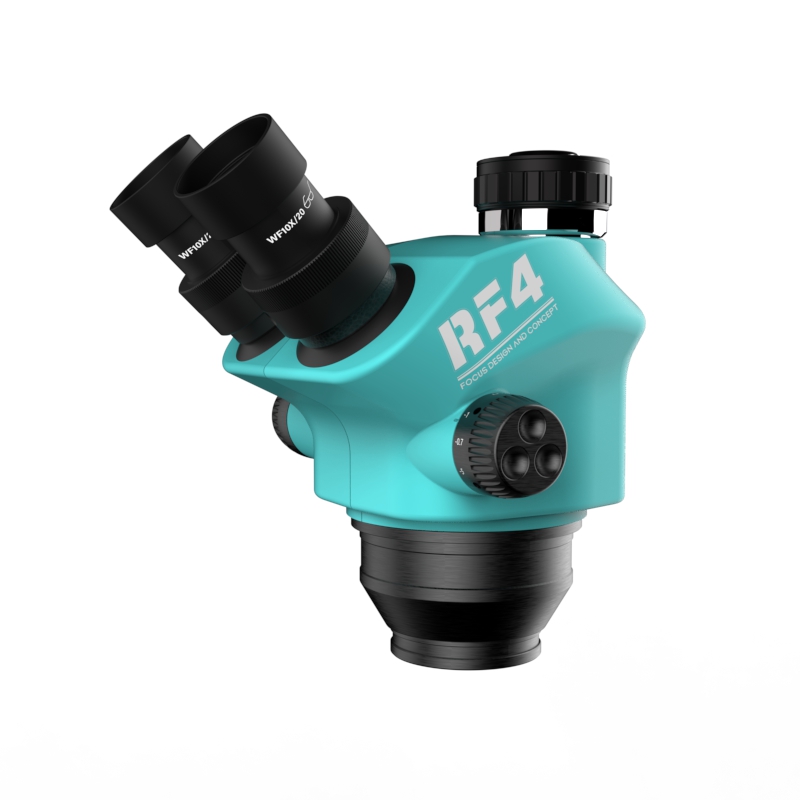

Head: 45-degree inclined 360-degree swiveling trinocular Eyepiece: WF10X/22MM Barlow Lens: 0.5X & 0.7&2.0X(optional) Objective: 0.7-5.0X Camera connector:1/2ctv Monitor and eyepiece. Synchronous zoomCamera:Different models optional Stand:250*330 mmAccessories: 144 adjustable led light & dust proof   Lens
Product Description
Microscopic structure

1 Eyepiece Shield
2 Eyepieces
3 Zoom Control Knob
4 Microscope Objective
5 silicone pad
6 Aluminium alloy base
7 Round Pillar
8 Focusing knob

Support parameters
Column aperture: Φ32mmLens aperture: Φ76mmCenter distance: 155mmLifting range: 50mm
The base parameters
240mm φ32mm pillar410*300mm

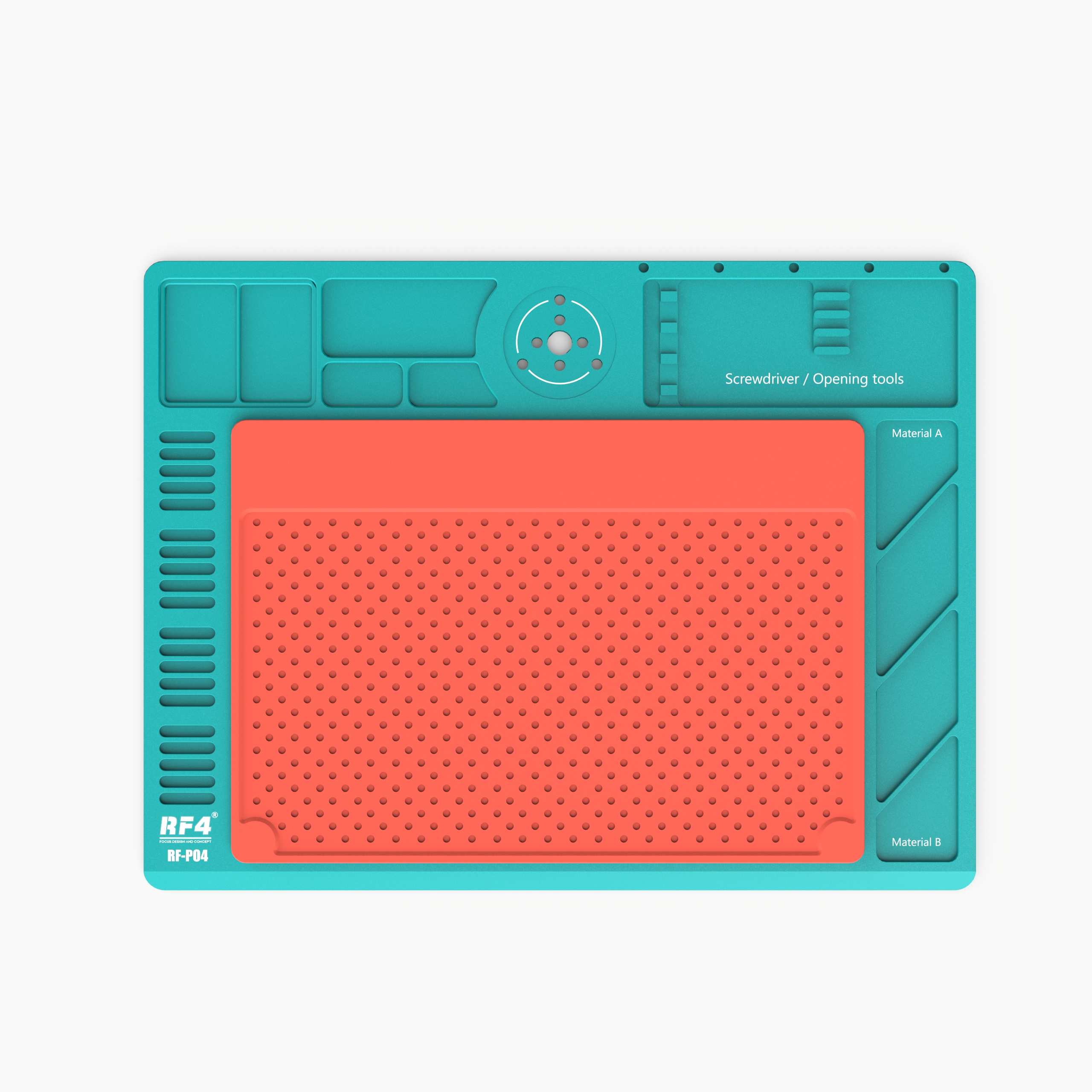

repair base Size:
250*330mm
Wide-angle eyepieces 10X/22
Magnification: 10X
Wide Field Of View 22mm
Matching size : 30mm
Applicable models are stereoscopic, fixed and continuous magnification microscopes
0.5X   CTV
1The material is all metal, the black part is aluminum alloy, and the silver part is copper chrome-plated bayonet.2The adapter ring can use LCD to focus, this kind of focus method is manual focus.3 The adapter has a transparent mirror inside, which can help the microscope display and the other display to achieve synchronous zooming.4   Weight: 0.09kg.
Different eyepieces match different magnifications of the same objective lens
