Description

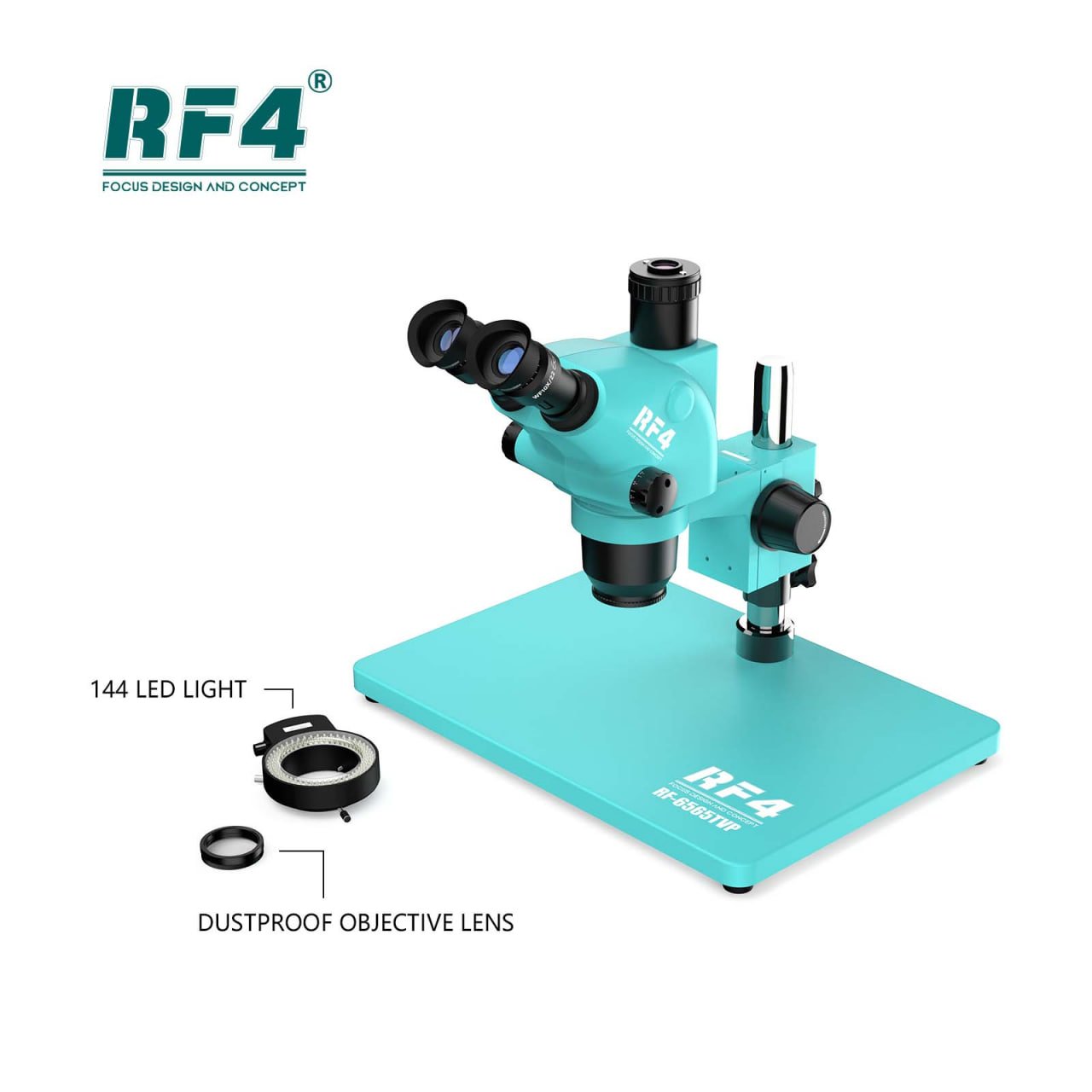

RF-6565TVP Trinocular HD Microscope
Overview
RF6565TVP Gemological Microscope Trinocular Synchronous Zoom Microscope Used For Semiconductor Maintenance Work
Magnification:big continuous zoom 6.5X to 65X Head: 45-degree inclined 360-degree swiveling trinocular Eyepiece: WF10X/22MM Adjust the focal Barlow Lens: 0.5X & 0.7&2.0X(optional) Objective: 0.65-6.5X Camera connector:1/2ctv Monitor and eyepiece. Synchronous zoomCamera:Different models optional Stand: 380 x260mmAccessories: 144 adjustable led light & dust proof Lens

Product Description

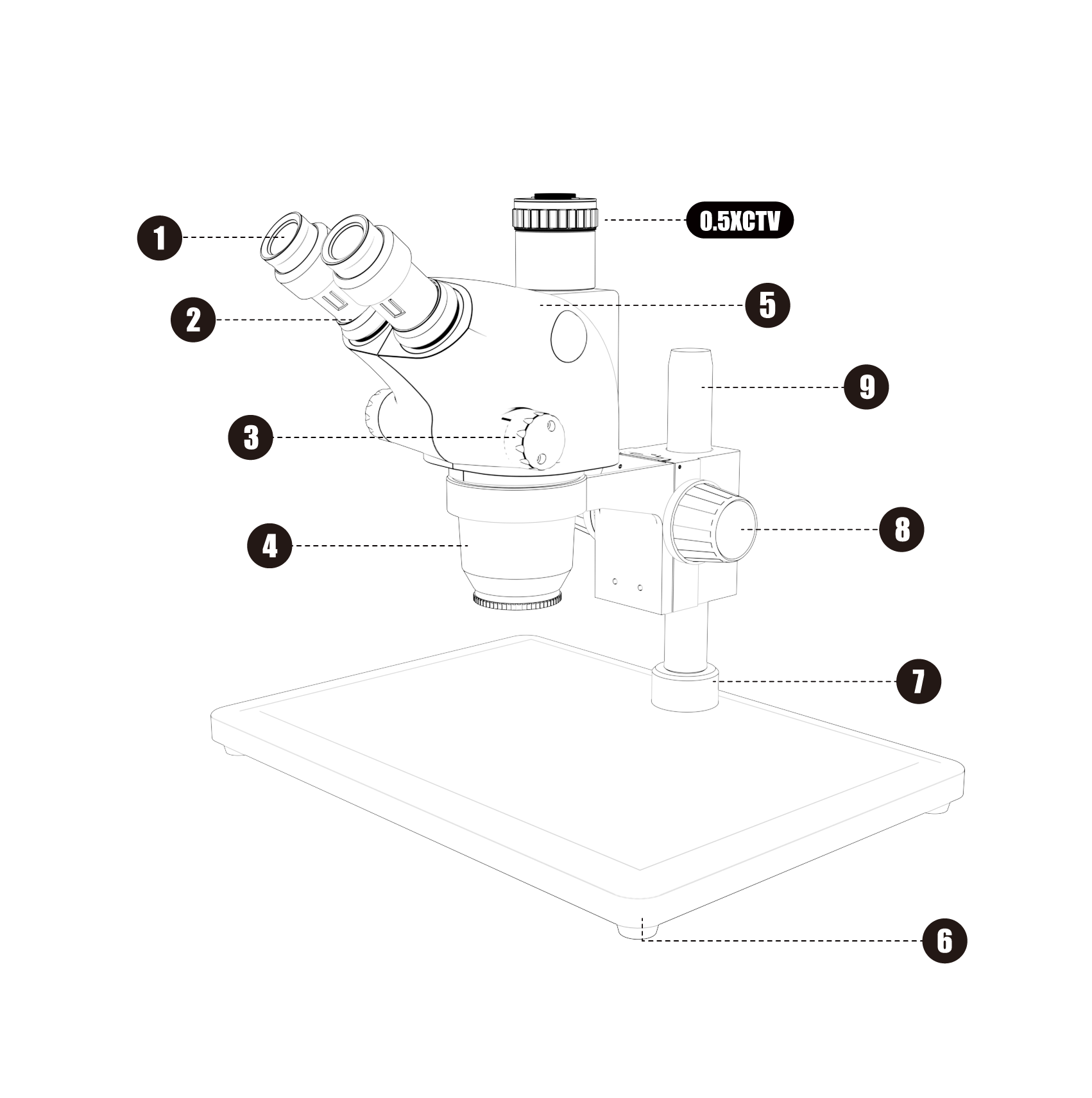

Microscopic structure
1 Eyepieces glass 2 Adjustable Eyepieces 3 Zoom Control Knob 4 objective lens 5 Microscope head6 Base 7 Round Column Mounting Place8 Focusing knob 9 Round Column

Support parameters
Column aperture: Φ32mmLens aperture: Φ76mmCenter distance: 155mmLifting range: 50mm

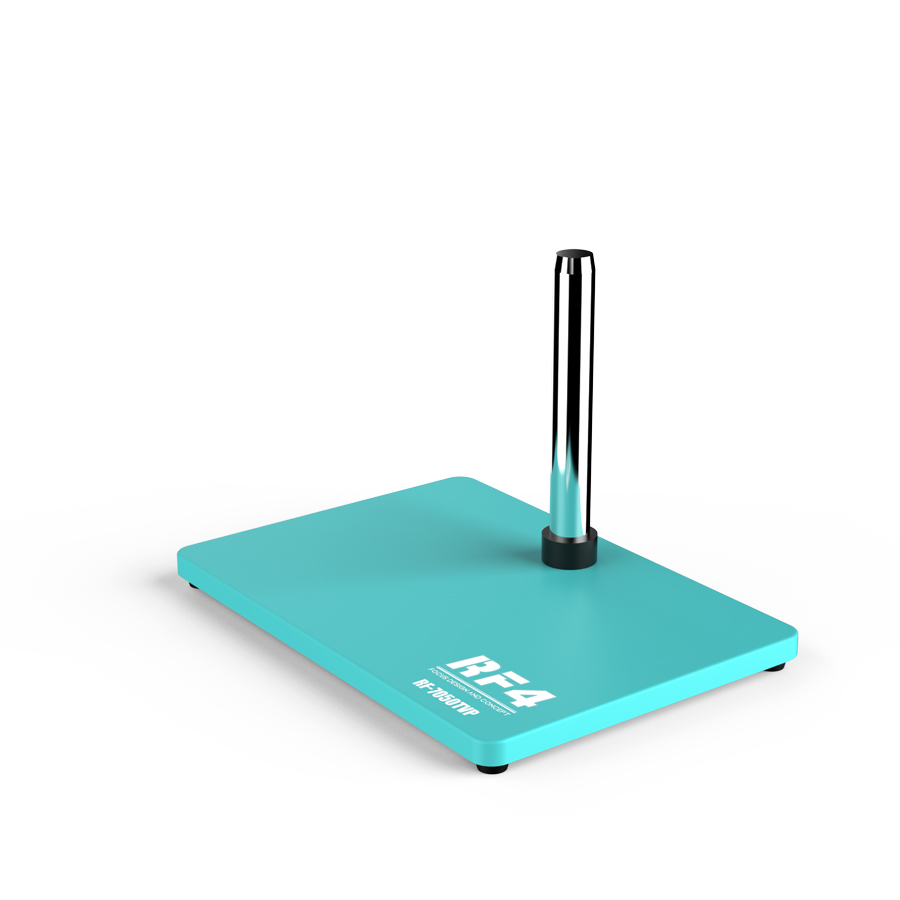

The base parameters
Column height: 240mmDiameter:φ32mm Base:380 x260mm

Wide-angle eyepieces 10X/22
Magnification: 10X
Wide Field Of View 22mm
Matching size : 30mm
Ajustable Eyepiece Lens,Suit for Stereo Microscope.

0.5X CTV
1The material is all metal, the black part is aluminum alloy, and the silver part is copper chrome-plated bayonet.2The adapter ring can use LCD to focus, this kind of focus method is manual focus.3 The adapter has a transparent mirror inside, which can help the microscope display and the other display to achieve synchronous zooming.4 Weight: 0.09kg.

Different eyepieces match different magnifications of the same objective lens

RF6565TVP Gemological Microscope Trinocular Synchronous Zoom Microscope Used For Semiconductor Maintenance Work
