Description

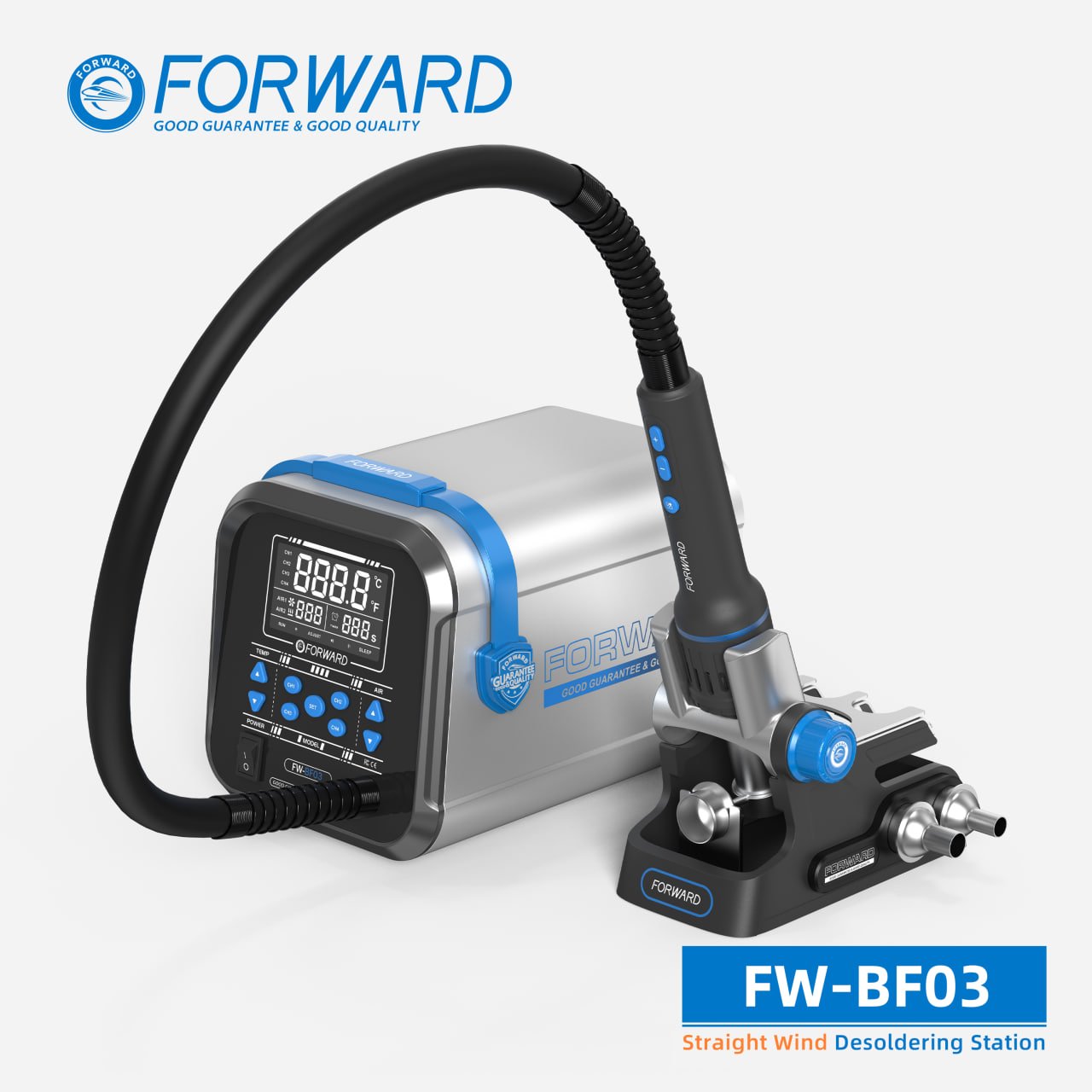

Forward BF03 Hot Air Rework Station

Forward FW-BF03 Precise Temperature Control Hot Air Desoldering Station

• Precise Temperature Control: Features resistance wire heating and K-type thermocouple sensing with microcomputer PID control, ensuring ±2°C accuracy and minimal linear distortion.
• Customizable Operation: The handle includes 3 buttons for switching memory channels, adjusting temperature, air volume, and air supply modes for convenient, flexible use.
• Efficient Airflow: Powered by a high-performance double ball vortex fan, offering low noise, light weight, large airflow, high air pressure, and a long service life. Airflow adjustable from 5% to 200%.
• Magnetic Switch Handle: Easily enters working mode when removed from the bracket, and returns to standby mode with cooling air when placed back, reducing energy consumption and extending heating element life.
• Active Safety Protection: Includes patented safety features like 3S fault detection, anti-dry burn protection, no handle burning, and automatic load cut-off in case of faults.
• Sound and Fault Code Alerts: Features audio alarms and fault code prompts for constant temperature, sleep mode, over-temperature, no-heat faults, and handle detachment, ensuring safe operation.
• Desoldering Time Alarm: Users can set a welding time, and the system will alert when the time is up, preventing damage to chips and circuit boards due to excessive soldering time.

Key Specifications/ Special Features:

Products Description：
1.Blue Fire
Precise Temperature Control Hot Air Gun

Ultra-Low Resistance Nozzle

Countdown Reminder

Ring Transformer

1300w Ceramic Heating Core

16,000 Rpm High-Speed Turbo Fan

2.

4 Memory Channels

9 Key Control

2 Temperature Controls

2 Air Volume Controls

4 Memory Channels

1 Ste Button

3.

Countdown Reminder

Safe & Secure

4.

Ultra-Low Resistance Nozzle

5 Options

316 Medical-Grade Material

Effectively Reduce Wind Resistance Effectively Reduces Wind Resistance

Continuous And Stable Output Continuous And Stable Output

5:

Active Safety Features Active Safety Features

When The Machine Fails To Blow The Wind, It Will Automatically Power Off To Avoid The Heating Core Has Been Hot.

When The Machine Fails To Blow The Wind, It Will Automatically Power Off To Avoid Overheating Of The Heating Core.

6.

Toroidal Transformer

Low Heat Generation Low Heat Generation

Continuous Operation Support Support Continuous Operation

Good Stability Good Stability

Long Lifespan Long Lifespan

7.

Plug-And-Pull Ceramic Heating Core Plug-And-Pull Ceramic Heating Core

Equipped With A Long-Life Imported Heating Core, With A Lifespan Of Several Years, Reducing Replacement And Maintenance Costs.

1300w Ceramic Heating Core. 1300w Ceramic Heating Core

8:

16,000 Rpm High-Speed Turbo Fan

Ultra-Long Working Life

Ensuring Strong And Light Airflow Output

Toughened Glass Screen

High-Aluminum

Scratch Resistance And High-Temperature Resistance

Durability

High-Temperature Resistant Silicone Wire And Tubing

Comfortable

Grip And Soft-Touch Feel

The Body Surface Is Made Of Tpu Material

9. Upgraded Bracket Base

10. There Are 3 Buttons On The Handle

You Can Switch Memory Channels, Adjust Temperature, Air Volume, Switch Air Supply Mode, Etc.

There Are 3 Buttons On The Handle, Which Can Switch Memory Channels, Adjusttemperature,Airvolume,Switch Air Supply Modes, Etc.
